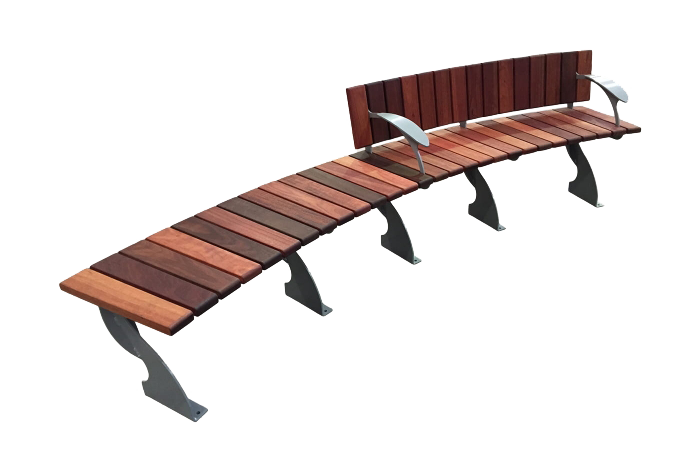

Arc Seat

Make a statement with a concave or convex curved seat featuring stainless steel frames. Specify with full, half or no backrest. For more curved seats, also see the Mall Curved Slim Bench and Aria Seating System.

Not exactly what you need? Call 1300 027 799 or make an online enquiry for a tailored solution.
Timber is a natural product with variations in tone and texture, and requires regular maintenance. Street Furniture Australia recommends oiling every three months. Failing to maintain timber will void your warranty.

Make a statement with a concave or convex curved seat featuring stainless steel frames. Specify with full, half or no backrest. For more curved seats, also see the Mall Curved Slim Bench and Aria Seating System.

Not exactly what you need? Call 1300 027 799 or make an online enquiry for a tailored solution.
Timber is a natural product with variations in tone and texture, and requires regular maintenance. Street Furniture Australia recommends oiling every three months. Failing to maintain timber will void your warranty.

Curved Street Furniture

Create S and C-shapes by placing seats side by side.


at a glance

    • Maintenance Level: Easy – Medium
    • DDA-compliant: Yes

Spare parts are readily available.

ORDER SPARE PARTS

specifications

MCODE
ARC-S

DIMENSIONS
535W x 795H x various lengths (mm)
21 1/16" W x 31 5/16" H x various lengths

BATTEN
Street Furniture Australia uses sustainable timber from
certified managed forests. Timber requires oiling
every three months.

Section 63x30mm:
• Eco-certified Jarrah hardwood oiled (PEFC)
• Tailored

CONFIGURATION
• Concave
                • IR 5500 & CL 2000mm
                • IR 4000 & CL 3000mm
                • IR 1600 & CL 3000mm
• Convex
                • IR 5500 & CL 2000mm
                • IR 4000 & CL 3000mm
                • IR 1600 & CL 3000mm
• Straight
                • 2000mm
                • 3000mm
• Tailored


FRAME
• Stainless 304 powder coated (see colour chart)

BACKREST
• None (bench)
• Half left
• Half right
• Full
• Tailored

MOUNTING
• Surface fixed
• Subsurface fixed
• Plinth mount
• Tailored

ARM
• None
• Integral
• Tailored

ARM QUANTITY
• 2
• 3
• Tailored

Some options incur additional fees and lead time.
For a tailored solution please contact a sales representative.

Videos


Durability of Street Furniture0:30


snapshots

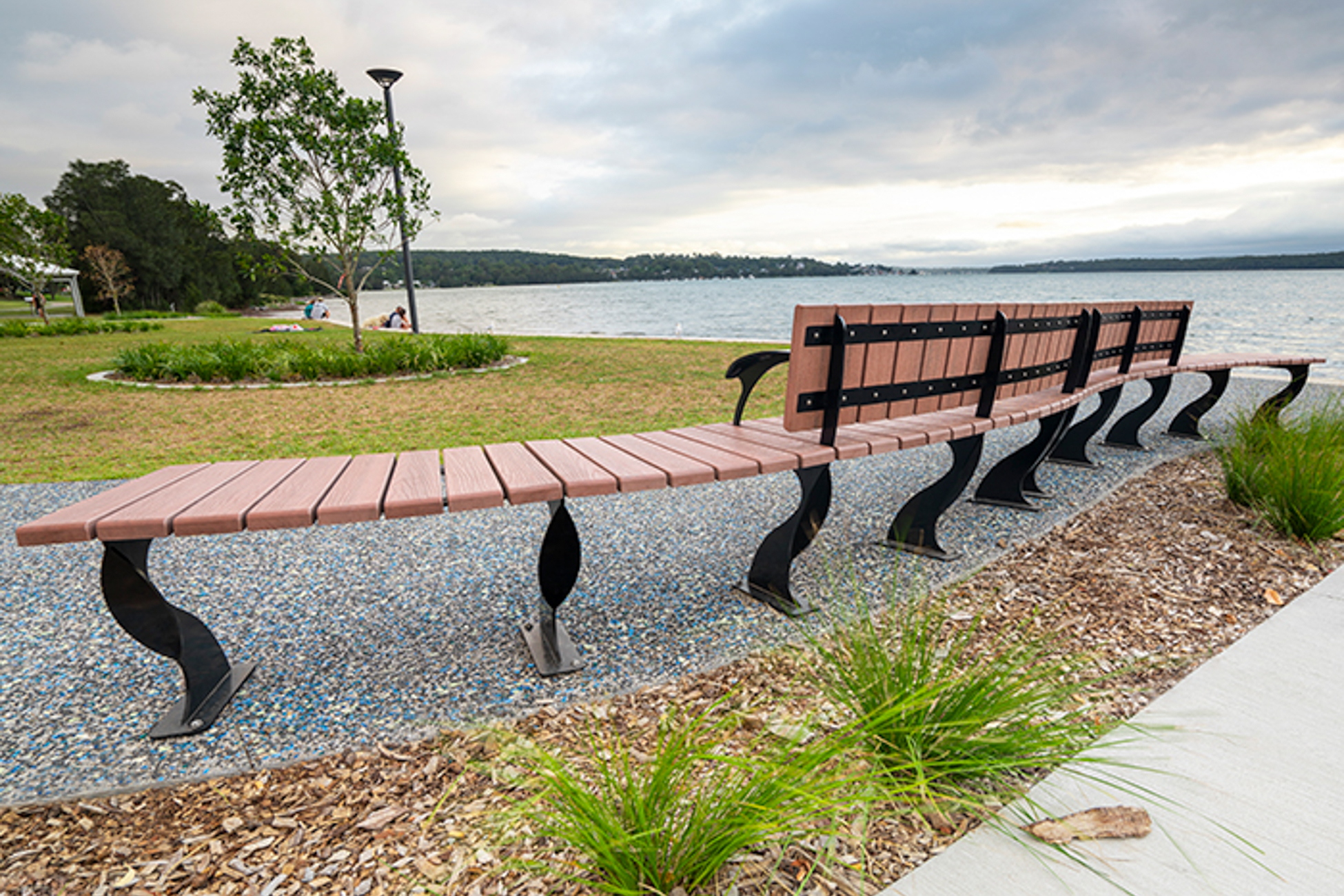

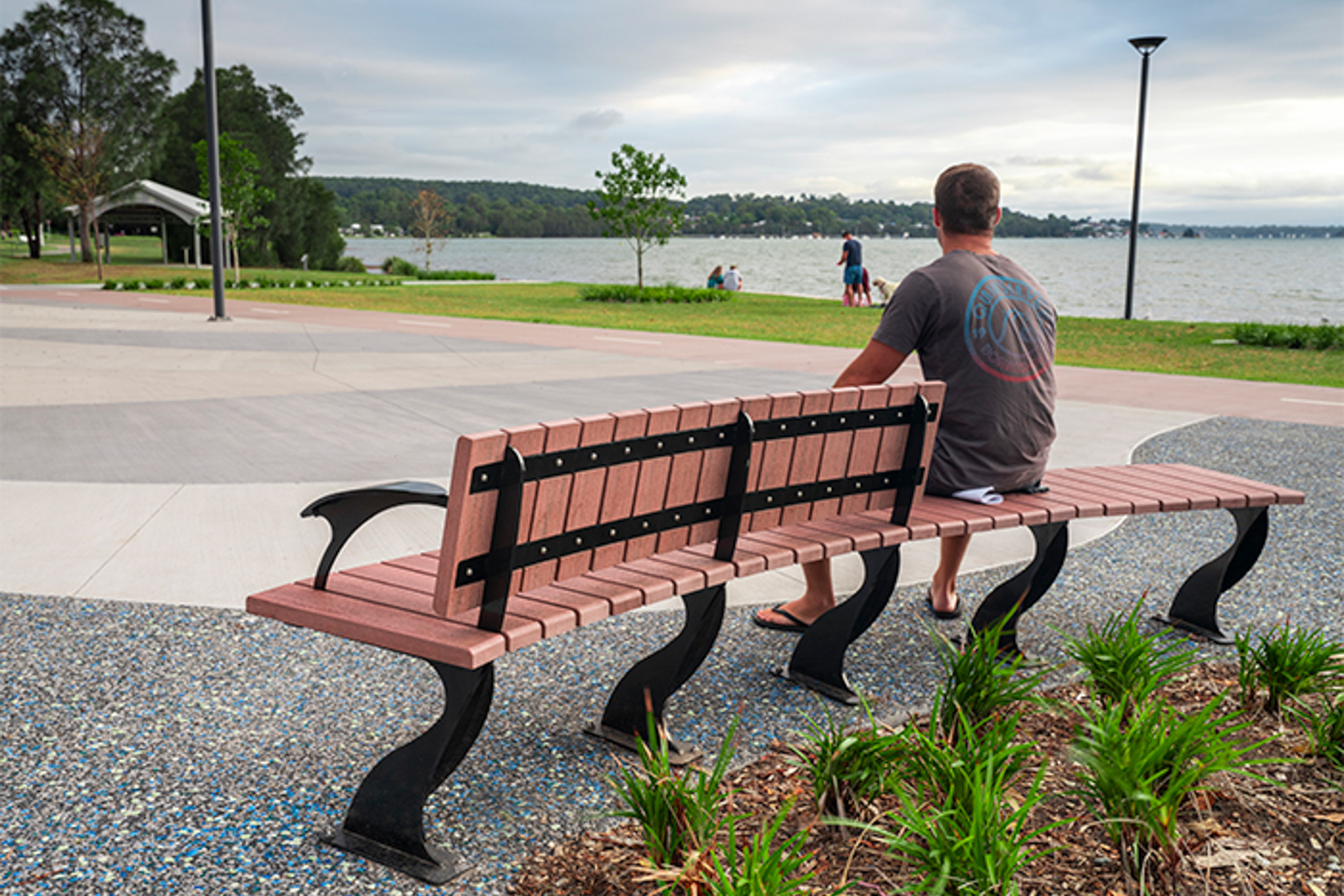

Arc Seat (ARC-S) straight, aluminium powder coated battens in Palladium Silver, Night Sky frame.

Arc Seat (ARC-S) straight, aluminium powder coated battens in Palladium Silver, Night Sky frame.

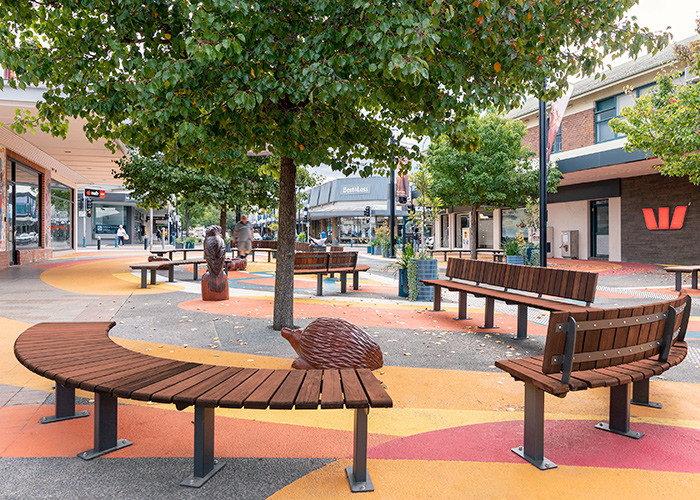

Arc Seat (ARC-S) straight, customised legs, eco-certified hardwood battens, Night Sky frame.
